ISIS 700 Image
Download Data sheet (106KB)


  • Provides the power of a PC in the hazardous area.
  • Dimensions: 400 x 300 x 180mm.
  • Provides a single, self-contained control station without the need for a separate server PC.
  • Specially ruggedised for use in harsh environments, the ISIS 700 is simple to install and will run any standard software packages.
  • Range includes 15" and 18" displays
  • Operating temperature range is 0-40C
  • Certified EEx de (ib) T6
  • Supply: 85-250V AC or 24V DC, 40W (approx)

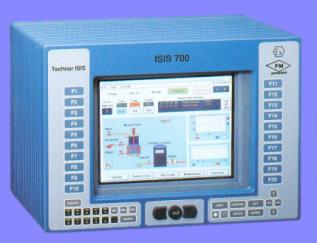

ISIS 700 Hazardous Area PC

The ISIS 700 is a complete PC for use in hazardous areas. The unit comprises of a membrane keyboard, an integral pointing device together with a 12.1" TFT colour display.

The display is of SVGA resolution (800 x 600) allowing 256000 colours. The LCD display is backlit using a cold-cathode flourescent lamp producing a bright, 300 cd/m2 screen.

The PC can be supplied with MS DOS, Windows 95/98, Windows NT and Embedded NT and others on request.

The communications interfaces include Ehternet 10/100 and 4 serial channels and a parallel port. Mass storage devices may be connected using SCSI and/or fast IDE. There is also a PC104 interface for hardware expansion.

The power requirements can be satisfied by a universal 85-250V AC supply or 24V DC. The power consumption is 40W (approx).

For further details and prices please contact us
